20l/S Xbc Type Diesed Engine Fire Pump

5L/S Series 10L/S Series 15L/S Series 20L/S Series 25L/S Series 30L/S Series
35L/S Series40/45 L/S Series 50/55 L/S Series 60/65 L/S Series 70/80 L/S Series

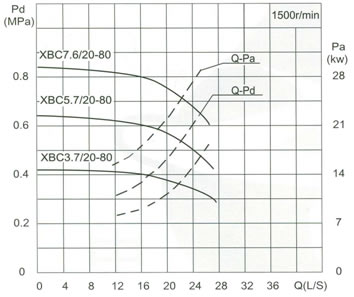

I Performance Data

Type Capacity
(L/S)		 Pd
Pressure
(MPa) 		P
Motor Power
KW		 n
Speed
(r/min) 		Efficiency
(%)		 (NPSH)r
(m)
XBC3.7/20-80 20 0.37 13.8 1500 64 4.2
XBC5.3/20-80 0.53 1800
XBC5.7/20-80 20 0.57 20.6 1500 64 4.2
XBC8.2/20-80 0.82 1800
XBC7.6/20-80 20 0.76 28.0 1500 64 4.2
XBC10.9/20-80 1.09 1800
Capacity:20 L/S Pressure:Pressure:0.37-1.09MPa
Capacity:20 L/S Pressure:Pressure:0.37-1.09MPa
Structure Of 20l/S Xbc Type Diesed Engine Fire Pump
Structure Of 20l/S Xbc Type Diesed Engine Fire Pump

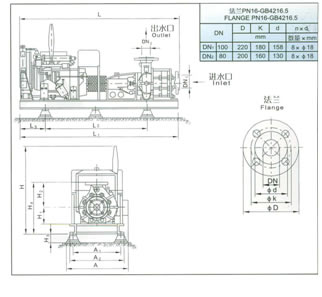

II 20l/S Xbc Type Diesed Engine Fire Pump Mounting Dimensions

Type H1 H2 H3 H4 H L L1 L2 L3 A1 A2 A Vibration Isolator Weight
(KG)
Type NO.
XBC3.7/20-80
5.3		 200 325 87 625 900 1590 1385 965 180 445 505 - JGD3 4 486
XBC5.7/20-80
8.2		 200 325 87 625 900 1685 1480 1060 180 445 505 - JGD3 4 548
XBC7.6/20-80
10.9		 200 325 87 625 900 1780 1428 1008 180 445 505 - JGD3 4 590
