BMC卡套穿板式接头

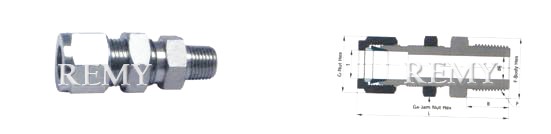

BMC卡套穿板式接头
T-Tube O.D PT-NPT Pipe Size (in) Basic Ordering Number E Minimum Opening L B G F Gx
6 6 6 6 1/8 1/4 3/8 1/2 -BMC-06-01 -BMC-06-02 -BMC-06-03 -BMC-06-04 4.5 4.5 4.5 4.5 50 52 53 56 10 13 14 17 14 14 14 14 14 14 14 14 17 17 17 17
8 8 8 8 1/8 1/4 3/8 1/2 -BMC-08-01 -BMC-08-02 -BMC-08-03 -BMC-08-04 4.5 6 6 6 52 54 55 59 10 13 14 17 17 17 17 17 14 14 14 14 17 17 17 17
10 10 10 10 1/8 1/4 3/8 1/2 -BMC-10-01 -BMC-10-02 -BMC-10-03 -BMC-10-04 4.5 6 7.5 7.5 52 55 55 58 10 13 14 17 19 19 19 19 17 17 17 17 19 19 19 19
12 12 12 12 1/8 1/4 3/8 1/2 -BMC-12-01 -BMC-12-02 -BMC-12-03 -BMC-12-04 4.5 4.5 7.5 9.5 57 60 62 64 10 13 14 17 22 22 22 22 19 19 19 19 22 22 22 22
英制
1/4 1/4 1/4 1/4 3/8 1/2 -BMC-2-02 -BMC-2-03 -BMC-2-04 4.5 4.5 4.5 52 53 56 13 14 17 14 14 14 14 14 14 17 17 17
3/8 3/8 3/8 1/4 3/8 1/2 -BMC-3-02 -BMC-3-03 -BMC-3-04 6 6 6 55 55 58 13 14 17 19 19 19 17 17 17 22 22 22
1/2 1/2 1/2 1/4 3/8 1/2 -BMC-4-02 -BMC-4-03 -BMC-4-04 9.5 9.5 9.5 60 62 64 13 14 17 22 22 22 19 19 19 24 24 24

选购注意事项：

本网页所示BMC卡套穿板式接头样本，包括：型号、结构图、性能参数、安装尺寸等，仅为参考，详细的BMC卡套穿板式接头说明书及价格，请来电来函垂询。鉴于编辑水平有限，错误和不妥之处在所难免，敬请指正。
