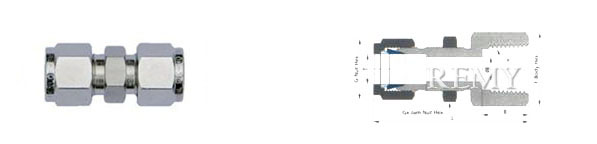

BFC卡套穿板式接头

BFC卡套穿板式接头
T-Tube O.D PT-NPT Pipe Size (in) Basic Ordering Number E Minimum Opening L B G F Gx
6 6 6 6 1/8 1/4 3/8 1/2 -BFC-06-01 -BFC-06-02 -BFC-06-03 -BFC-06-04 4.5 4.5 4.5 4.5 49 54 54 59 10 15 15 20 14 14 14 14 14 19 22 27 17 17 17 17
8 8 8 8 1/8 1/4 3/8 1/2 -BFC-08-01 -BFC-08-02 -BFC-08-03 -BFC-08-04 4.5 6 6 6 51 56 56 61 10 15 15 20 17 17 17 17 14 19 22 27 19 19 19 19
10 10 10 10 1/8 1/4 3/8 1/2 -BFC-10-01 -BFC-10-02 -BFC-10-03 -BFC-10-04 4.5 6 7.5 7.5 53 58 58 63 10 15 15 20 19 19 19 19 17 19 22 27 22 22 22 22
12 12 12 1/4 3/8 1/2 -BFC-12-02 -BFC-12-03 -BFC-12-04 6 7.5 9.5 62 62 67 15 15 20 22 22 22 19 19 22 24 24 24

6 6 6 6 10×1 12×1.5 14×1.5 20×1.5 -BFC-06-101 -BFC-06-1215 -BFC-06-1415 -BFC-06-2015 4.5 4.5 4.5 4.5 50 51 52 55 11 12 13 16 14 14 14 14 14 17 19 24 17 17 17 17
8 8 8 8 10×1 12×1.5 14×1.5 20×1.5 -BFC-08-101 -BFC-08-1215 -BFC-08-1415 -BFC-08-2015 6 6 6 6 50 51 52 55 11 12 13 16 17 17 17 17 14 17 19 24 19 19 19 19
10 10 14×1.5 16×1.5 -BFC-10-1415 -BFC-10-1615 7.5 7.5 56 57 13 14 19 19 19 22 22 22
12 12 16×1.5 20×1.5 -BFC-12-1615 -BFC-12-2015 9.5 9.5 61 63 14 16 22 22 22 24 24 24

选购注意事项：

本网页所示BFC卡套穿板式接头样本，包括：型号、结构图、性能参数、安装尺寸等，仅为参考，详细的BFC卡套穿板式接头说明书及价格，请来电来函垂询。鉴于编辑水平有限，错误和不妥之处在所难免，敬请指正。
