MIYAWAKI RE1 Bellows Steam Pressure Reducing Valve (PRV)

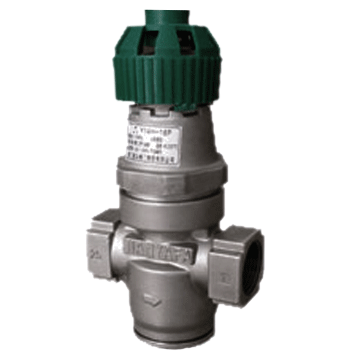

MIYAWAKI RE1 Series Y14H/F Bellows Steam Pressure Reducing Valve (PRV)
Y14H/F bellows steam pressure reducing valves (PRV) are newly improved product based on MIYAWAKI RE Series, designed only for steam.
Performance
| Nominal Pressure | PN 1.6 MPa |
| Tested Pressure of Shell | 2.4 MPa |
| Sealing Test Pressure | 1.76 MPa |
| Max. Inlet Pressure | 1.6 MPa |
| Pressure Range of Outlet | 0.05-1.0 MPa |
| Min. Differential Pressure | 0.15 MPa |
| Medium | Water, Steam, Liquid, Air, Oxygen, Nitrogen, etc. |
| Operating Temperature | 220 °C |
Materials
| Name | Materials |
| Body, Bottom Bonnet | CF8 |
| Bonnet | casting aluminium alloy, CF8 |
| Seat / Plug | CF8 |
| Bellows | 1Cr18Ni9Ti |
| Spring | G61500 |
| Adjusting Spring | 92600 |
Dimensions
MIYAWAKI RE Series Y14H/F Bellows Pressure Reducing Valve (PRV)
| DN | G | L | H | H1 |
| DN15 | 1/2 | 85 | 140 | 52 |
| DN20 | 3/4 | 95 | 143 | 55 |
| DN25 | 1 | 105 | 146 | 58 |
