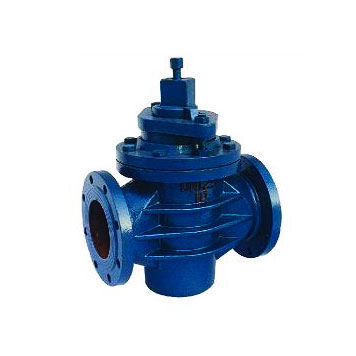

X47W Lubricate Plug Valve

X47W Lubricate Plug Valve

Performance

Nominal Pressure
PN
(MPa) 		Test Pressure
PS
(MPa)		 Working Pressure
P
(MPa) 		Fluids Working Temperature
( °C )
Case Body Seal
1.0 1.5 1.1 1.0 Gas, Oil ≤100

Materials

Name of Parts Body, Plug Packing Gasket
Material GGG-25 Rubber + Sabestos Rubber + Sabestos

Dimensions

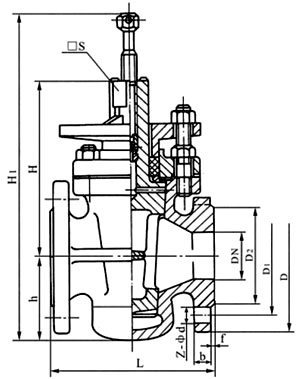

Dimensions of X47W Lubricate Plug Valve
Nominal Diameter
(DN)		 Dimensions
(mm)
L D D1 D2 □S Z -фd H1
50 170 160 125 100 32 4 –ф18 315
65 220 180 145 120 36 4 –ф18 360
80 250 195 160 135 46 4 –ф18 455
100 300 215 180 155 50 8 –ф18 500
125 350 245 210 185 55 8 –ф18 510
150 400 280 240 210 60 8 –ф23 605
200 450 335 295 265 60 8 –ф23 760
250 530 390 350 320 85 12 –ф23 800
300 580 440 400 368 100 12 –ф23 820
