X44W 3 Way Flanged Ends Plug Valve

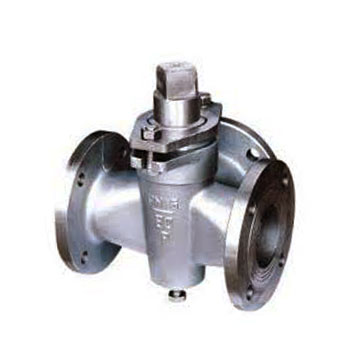

Stainless Steel X44W 3 Way Flanged Ends Plug Valve
X44W 3 Way Threaded Ends Plug Valve

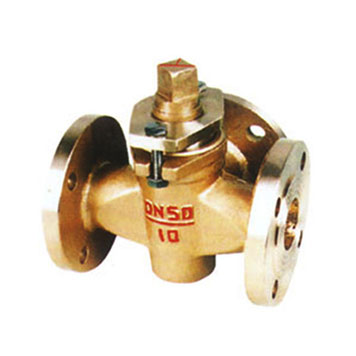

Copper Plug X44W 3 Way Flanged Ends Plug Valve
Copper X44W 3 Way Flanged Ends Plug Valve

Materials

Name Body Plug Bonnet Packing
X44W-1.0 GGG-25 GGG-25 GGG-25 Asbestos Fibre, Graphite
X44T-1.0 GGG-25 Copper GGG-25
X44W-1.0T Copper Copper Copper
X44W-1.0P SS.304 SS.304 SS.304
X44W-1.0R SS.316 SS.316 SS.316

Performance

Type Nominal Pressure
PN
(MPa)		 Test Pressure
PS
(MPa)		 Fluids Working Temperature
( °C )
Body Seal
X44W-1.0 1.0 1.5 1.1 Oil, Gas ≤ 100
X44T-1.0 1.0 1.5 1.1 Water, Oil, Gas
X44W-1.0T 1.0 1.5 1.1 Water, Oil, Gas
X44W-1.0P 1.0 1.5 1.1 Nitric Acid & Acetic Acid ≤ 250°C
X44W-1.0R 1.0 1.5 1.1 Nitric Acid & Acetic Acid ≤ 250°C

Dimensions

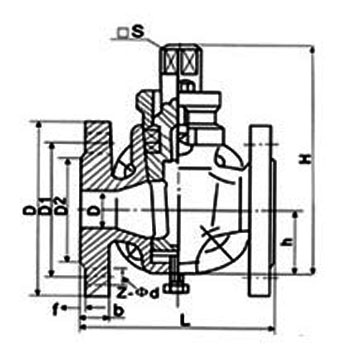

Dimensions of X44W 3 Way Flanged Ends Plug Valve
DN L D D1 D2 z-Φd
20 90 150 105 75 55 4 × 14
25 110 160 115 85 65 4 × 14
32 115 190 135 100 78 4 × 18
40 150 200 145 110 85 4 × 18
50 170 220 160 125 100 4 × 18
65 220 280 180 145 120 4 × 18
80 250 300 195 160 135 4 × 18
100 300 340 215 180 155 8 × 18
125 350 245 210 185 8 × 18
150 400 280 240 210 8 × 23
200 450 335 295 265 8 × 23
250 530 390 350 320 8 × 23
300 580 440 400 368 8 × 23
