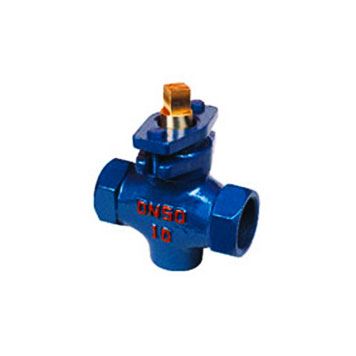

X13W Threaded Ends Plug Valve

X13W Threaded Ends Plug Valve

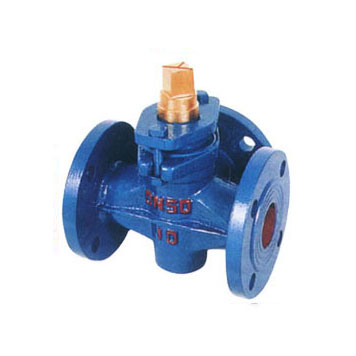

X43W Flanged Ends Plug Valve

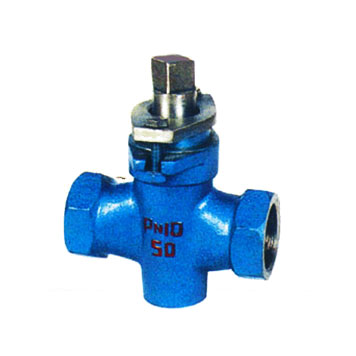

X13W Threaded Ends Stainless Steel Plug Valve

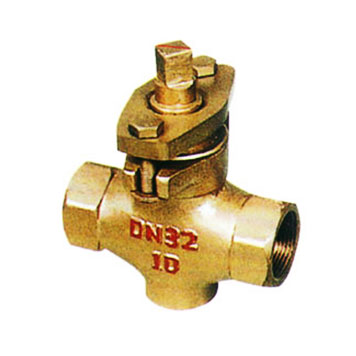

X13W Threaded Ends Brass Plug Valve

Materials

Name Body Plug Bonnet Packing
X13W-1.0 GGG-25 GGG-25 GGG-25 Asbestos Fibre, Graphite
X13T-1.0 GGG-25 Copper GGG-25
X13W-1.0T Copper Copper Copper
X13W-1.0P SS.304 SS.304 SS.304
X13W-1.0R SS.316 SS.316 SS.316

Performance

Type Nominal Pressure
PN
(MPa)		 Test Pressure
PS
(MPa)		 Fluids Working Temperature
( °C )
Body Seal
X13W-1.0 1.0 1.5 1.1 Oil, Gas ≤ 100
X13T-1.0 1.0 1.5 1.1 Water, Oil, Gas
X13W-1.0T 1.0 1.5 1.1 Water, Oil, Gas
X13W-1.0P 1.0 1.5 1.1 Nitric Acid & Acetic Acid ≤ 250°C
X13W-1.0R 1.0 1.5 1.1 Nitric Acid & Acetic Acid ≤ 250°C

Dimensions

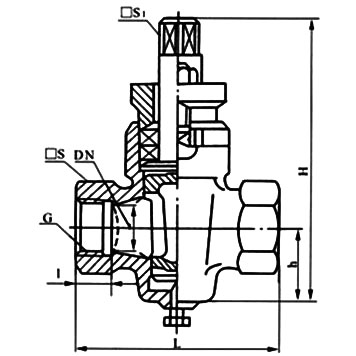

Dimensions of X13W Threaded Plug Valve
DN G Thread mm
L I □S □S1 h1 H
15 1/2″ 85 14 30 11 26 99
20 3/4″ 90 16 36 14 34 124
25 1″ 110 18 46 17 38 133
32 1 1/4″ 130 20 55 19 45 152
40 1 1/2″ 150 22 60 22 55 212
50 2″ 170 24 75 27 74 260
65 2 1/2″ 220 26 90 32 82 295
80 3″ 250 30 105 36 125 327
100 4″ 300 30 140 46 135 425
