Instrument Plug Valve

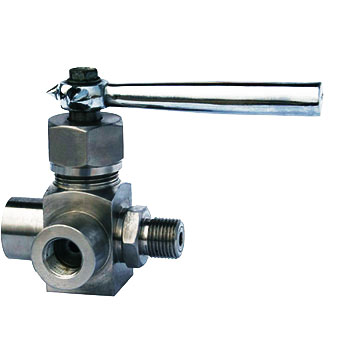

X14H 3 Way Instrument Plug Valve

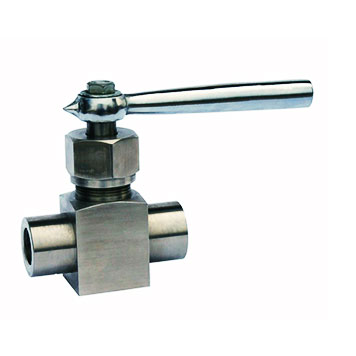

X14H 2 Way Instrument Plug Valve

Materials

Part Name Body Plug Bonnet Packing
X14H-4.0C
X13H-4.0C		 WCB WCB WCB Graphite
X14H-4.0T
X13H-4.0T		 Brass Brass Brass
X14H-4.0P
X13H-4.0P		 SS.304, SS.316 SS.304, SS.316 SS.304, SS.316

Performance

Type Nominal Pressure
PN
(MPa)		 Test Pressure
PS
(MPa)		 Working Temperature
( °C ) 		Fluids
Body Seal
X14H-4.0C
X13H-4.0C		 1.6~6.4 2.0~7.0 1.6~6.4 ≤150°C Water, Steam, Oil
X14H-4.0T
X13H-4.0T		 1.6~6.4 2.0~7.0 1.6~6.4
X14H-4.0P
X13H-4.0P		 1.6~6.4 2.0~7.0 1.6~6.4 Nitric Acid

Dimensions

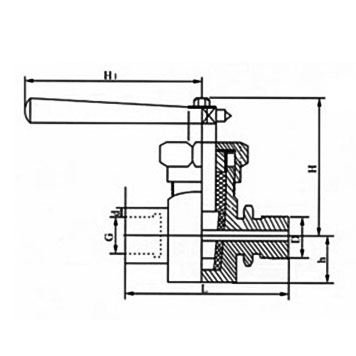

Dimensions of Instrument Plug Valve
Type Dimensions (mm)
D L G d h H H1
X14H-4.0C
X13H-4.0C		 G1/2 91 20 × 1.5 6.5 25 85 123
X14H-4.0T
X13H-4.0T
X14H-4.0P
X13H-4.0P
