GMJ11F/H-25 High Seal Completely Sampling Valve

GMJ11F/H-25 High Seal Completely Sampling Valve
GMJ11F/H-25 High Seal Completely Sampling Valve

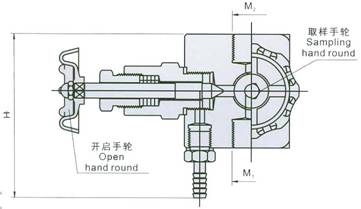

Structure of GMJ11F/H-25 High Seal Completely Sampling Valve
Structure of GMJ11F/H-25 High Seal Completely Sampling Valve

GMJ11F/H-25 high seal completely sampling valve chief property and specification:

GMJ11F/H-25 high seal completely sampling valve Design Manafacfure According: GB/T12224-1989,JB/T7747-1995, Link a form: inside screw link, Structure characteristic: The hard and soft double seals completely a pair; Movable valve petal, The valve examines with experiment: GB/T13927-1992

GMJ11F/H-25 high seal completely sampling valve test standard Unit:MPa

TESTITEM PRESSURE VALVE
Nominal Pressure 25
Shell Test 37.5
Test 27.5
Air Pressure Test 0.9
Suitable Temperature =250°C
Suitable Medium Water, Steam, Oil

GMJ11F/H-25 high seal completely sampling valve materials for main parts:

TYPE BODY TIE-IN VALVE HANDLE SCREW
CAP		 PACKING
GMJ11F/H-250II 20# 20# 410 S.S. 20# Flexible Graphite + PTFE
GMJ11F/H-250PII 304SS 304SS 304SS 304SS

GMJ11F/H-25 high seal completely sampling valve dimensions(mm):

SPECIFICATION M1 M2 H
DN6 G1/2 M20×1.5 110
