Ball Valves, Tube Fitting Lagging Extension to Female NPT with Gauge Ports
Pressure: PN 6.4 MPa
Material: 304SS 316SS 20#,
Tube Fitting Lagging Extension to Female NPT with Gauge Ports

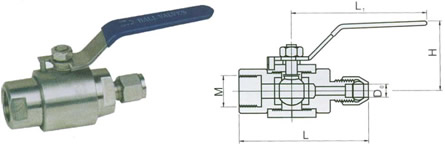

PN 6.4 MPa- Tube Fitting Lagging Extension to Female NPT with Gauge Ports-Dimensions:
PN 6.4 MPa- Tube Fitting Lagging Extension to Female NPT with Gauge Ports-Dimensions
| SPECIFICATION | Do | L | L1 | M | H | NOMINAL PRESSURE |
| DN4 | Φ6 | 90 | 110 | G1/2 | 44 | =6.4MPa |
| DN6 | Φ8 | 90 | 110 | G1/2 | 44 | =6.4MPa |
| DN8 | Φ10 | 95 | 110 | G1/2 | 44 | =6.4MPa |
