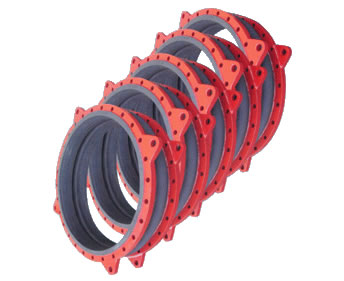

B Type Rubber Expansion Joints
B Type Rubber Expansion Joints

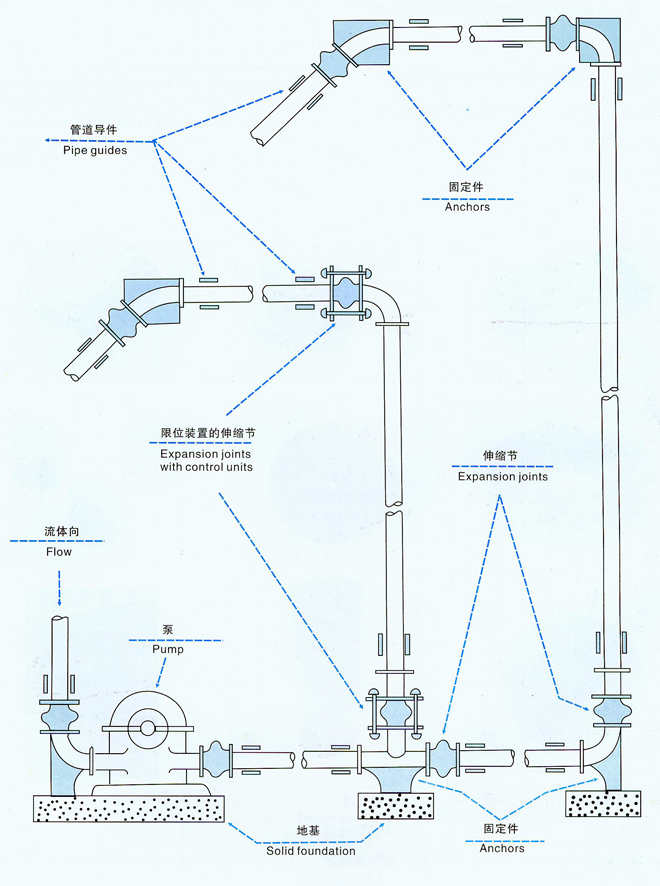

My factory Rubber Expansion Joints are flexible and durable connections installed in piping systems handling virtually all fluids, gasses or chemicals under pressure and/or vacuum. The four basic functions of My factory Rubber Expansion Joints are to:
.Isolate of reduce vibration caused by motive equipment, such as centrifugal pumps and fans.
.Compensate for movements (longitudial, transverse and angular) that result when pumps, compressors. fans, piping and related items of equipment go out of line because of wear, stress of settling of supporting foundations.
.Act as helix springs, compensating for axial movements, and allow expansion or contraction or contraction movements due to thermal changes and hydraulic surges.
.Dampen the transmission of unwanted system noises.

II Table Of Property Parameters

nominal size dimensions of arch (mm) standard lengh (mm) working pressure (kg f/cm2) max.movement per single arch (mm)
A B E S R Single arch double arch triple arch light duty heavy duty compression elongation transverse
40 1½ 20 30 7 130 200 270 5 10 12 7 7
50 2 20 30 7 130 200 270 5 10 12 7 7
65 2½ 20 30 7 130 200 270 5 10 12 7 7
80 3 20 30 7 130 210 290 5 10 12 7 7
100 4 20 30 7 130 210 290 5 10 12 7 7
125 5 25 35 8 150 270 360 5 10 15 8 8
150 6 25 35 8 150 270 320 5 10 15 8 8
200 8 30 40 10 180 290 400 5 10 18 10 10
250 10 30 40 10 200 310 420 5 10 18 10 10
300 12 30 40 10 230 320 430 5 10 18 10 10
350 14 35 50 12 230 350 470 5 8 21 12 12
400 16 35 50 12 230 360 490 5 8 21 12 12
450 18 35 50 12 240 370 500 5 8 21 12 12
500 20 40 60 15 250 380 510 3 8 24 13 15
600 24 40 60 15 250 400 550 3 8 24 13 15
700 28 40 60 15 250 400 550 3 6 24 13 15
800 32 40 60 15 260 400 620 3 6 24 13 15
900 36 40 60 15 260 400 620 3 6 24 13 15
1,000 40 50 60 15 300 480 660 2 5 30 16 15
1,100 44 50 60 15 300 500 700 2 5 30 16 15
1,200 48 50 60 15 300 500 700 2 5 30 16 15
1,350 54 60 80 20 350 570 790 2 5 36 20 20
1,500 60 60 80 20 350 570 790 2 5 36 20 20
1,600 64 60 100 25 390 630 870 2 3 36 20 25
1,650 66 60 100 25 390 630 870 2 3 36 20 25
1,800 72 60 100 25 450 690 930 2 3 36 20 25
2,000 80 60 100 25 450 690 930 2 3 36 20 25
