Proportional Pressure Reducing Valves

Y43X-10/16T/P, Y13X-10/16T/P series proportional pressure reducing valve consist of valve body, piston, gland, O-ring, seal pad etc. The valve is set with a floating piston in its internal cavity and changes the pressure at water inlet and outlet by means of the pressure difference caused by different horizontal areas on both sides of the piston .The area difference on both sides of the piston in the pipeline subjected to pressure makes the pressure difference on both inlet and outlet of the valve, thus get the purpose of pressure reduction. This valve can reduce both" dynamic"and "static" pressure, having a strict and brand-new structure, smooth movement, exquisite volume, light weight. And it is easy to be mounted and maintained, wearable and leak-preventing. It is made by using the advanced workmanship and surface treatment; therefore it is corrosion-proof and rust-proof without pollution to water nature. The standard pressure ratio provided by our Company is available with: 2:1, 3:1, 4:1, 5:1, 5:2 etc, and those pressure reducing valves with special ratios can also be designed according to the customer's requirements.

Technical Parameters

Type Y13X-1016 Y43X-1016
Type of connection Endo screw thread Flange
Applicable medium Water, Air
Applicable temperature ≤90°C
Working pressure 1.0MPa,1.6MPa, 2.5MPa
Pressure error ±2.5
Minimum opening pressure 2:1 0.2MPa
3:1 0.3MPa
4:1 0.3MPa
5:2 0.2MPa
Proportional Pressure Reducing Valves
Proportional Pressure Reducing Valves

Materials

Name of parts Materials
Body, Gland C.l. Cast Steel , Bronze, Stainless Steel
Piston Bronze or Stainless Steel

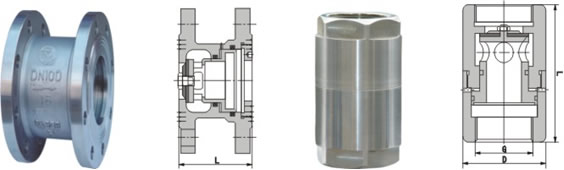

Dimensions

Type Y13X-1016 2:1,3:1,4:1,5:1,5:2
DN(mm) 15 20 25 32 40 50
G(mm) 1/2" 3/4" 1" 11/4" 11/2" 2"
L(mm) 80 80 90 100 110 120
D(mm) 53 58 63 69 75 86
Type Y43X-1016 2:1,3:1,4:1,5:1,5:2
DN(mm) L D D1 D2 b n-fd
50 85 165 125 102 20 4-18
65 102 185 145 122 20 4-18
80 122 200 160 133 22 8-18
100 140 220 180 158 24 8-18
125 160 250 210 184 26 8-18
150 175 285 240 212 26 8-22
200 230 340 295 268 28/30 8-22/12-22

Typical Installation

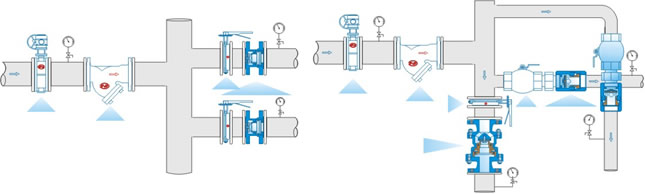

Typical Installation of Proportional Pressure Reducing Valves
