H42FS PTFE / FEP / PFA Lined Ball Check Valve

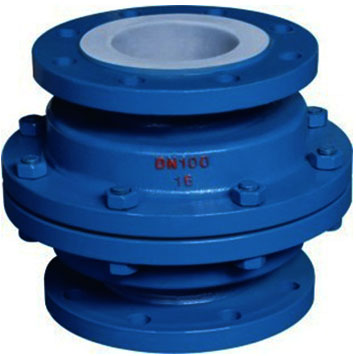

H42FS PTFE / FEP / PFA Lined Ball Check Valve

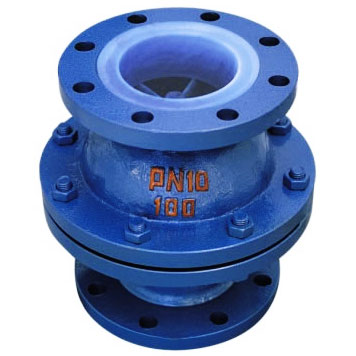

Pic 2 of H42FS PTFE / FEP / PFA Lined Ball Check Valve

Specification

Design Specification Face to Face Dimension Connecting Flange Test and Spection Product Marks Supply Specification
GB/T 12235 GB/T 12221 GB/T 4216 GB/T 13927 GB/T 12220 GB/T 7928

Materials

No. Part Name Grey Cast Iiron / Ductile Iron Cast Steel
Z C
1 Body GG 25 / GGG 40 WCB
2 Lining PTFE / FEP / PFA
3 Ball CI or WCB Ball Fully lined Fluoroplastics or Rubber

Dimensions & Weights

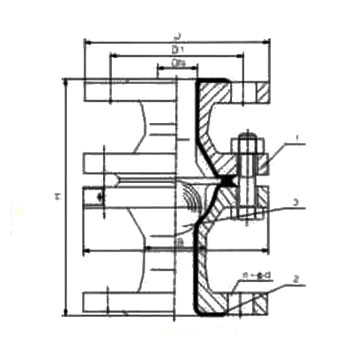

Dimensions & Weights of H42FS PTFE / FEP / PFA Lined Ball Check Valve
Nominal Pressure
(MPa)		 Diameter L D D1 B N-Φd Weight / Kg
mm inch
1.0 / 1.6 15 1/2″ 150 95 65 95 4-14 3
25 1″ 150 105 75 100 4-14 3.5
32 1-1/4″ 152 115 85 125 4-14 5
40 1-1/2″ 165 150 110 145 4-18 7.5
50 2″ 178 165 125 165 4-18 10.5
65 2-1/2″ 190 185 145 205 8-18 16.5
80 3″ 203 200 160 240 8-18 21.5
100 4″ 229 220 180 270 8-18 38
125 5″ 325 250 210 286 8-18 55
150 6″ 394 285 240 380 8-22 78.5
200 8″ 457 340 295 440 8-22 104
