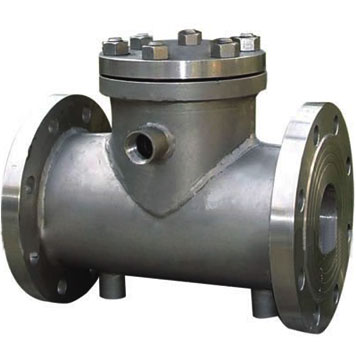

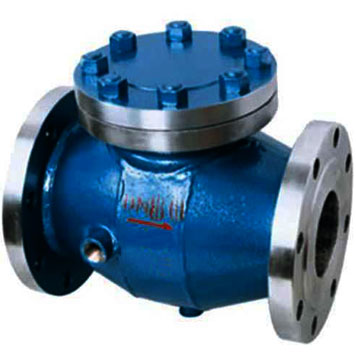

Jacketed Check Valve

Flange jacket insluation check valves
Flange jacket insluation check valves

The function of BH44H Jacketed Check Valve is preventing media backflow in the pipelines. BH44H Jacketed Check Valve are automatic valves, the hoist part is relying on the flowing media power to open or close. It is only for mdia of one-way flow pipelines, to prevent the media backflow and accidents. Applicable medium: water, oil, steam, acid medium and so on.

1.6MPa
DN 15 20 25 32 40 50 65 80 100 125 150 200 250 300
L 130 150 160 180 200 230 290 310 350 400 480 600 650 750
H 90 95 100 105 110 115 140 170 200 230 255 285 290 300
Wt 14 15 16 17 18 19 24 29 40 58 83 100 105 110
2.5MPa
DN 15 20 25 32 40 50 65 80 100 125 150 200 250 300
L 130 150 160 180 200 230 290 310 350 400 480 600 650 750
H 90 95 100 105 110 115 140 170 200 230 260 285 290 300
Wt 14 15 16 17 18 19 24 29 40 72 104 145 180 230
4.0MPa
DN 32 40 50 65 80 100 125 150 200 250 300
L 180 200 230 290 310 350 400 480 600 650 750
H 120 140 150 160 175 200 225 260 315 320 300
Wt 9 12 15 20 33 41 73 1040 147 180 230
6.4MPa
DN 32 40 50 65 80 100 125 150 200 250 300
L 230 260 300 340 3800 430 500 550 600 775 900
H 160 170 170 1900 205 230 265 310 350 480 520
Wt 12 20 29 35 47 68 100 142 195 250 300
10.0MPa
DN 15 20 25 32 40 50 65 80 100 125 150 200 250 300
L 130 150 160 180 200 230 290 310 350 400 480 600 650 750
H 90 95 100 105 110 115 140 170 200 230 255 285 290 300
Wt 14 15 16 17 18 19 24 29 40 58 83 100 105 110
16.0MPa
DN 15 20 25 32 40 50 65 80 100 125 150 200 250 300
L 130 150 160 180 200 230 290 310 350 400 480 600 650 750
H 90 95 100 105 110 115 140 170 200 230 260 290 290 300
Wt 14 15 16 17 18 19 24 29 40 72 104 180 180 230
