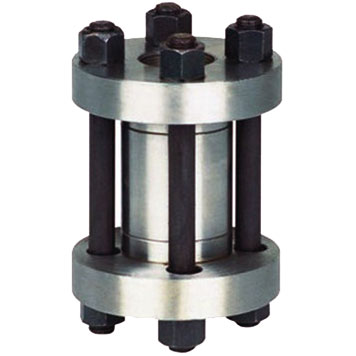

H72H High Pressure Vertical Check Valve

H72H High Pressure Vertical Check Valve

Specifications

Type Nominal Pressure Temperature Fluid
H72H-160 16 MPa ≤ 200 °C Ammonia, Hydrogen, Copper Ammonium, Ammonia, Lye
H72H-320 32 MPa ≤ 200 °C
H72W-220R 22 MPa ≤ 200 °C Urea, Methylamine
H72W-320R 32 MPa ≤ 200 °C

Materials

Part Name Seat, Disc Bonnet Body O-ring
H72Y-160 / H72Y-320 Cr steel Carbon steel Cr steel Fluorubber 26-41
H72W-220R / H72W-320R Cr-Ni-Mo Stainless Steel -

Dimensions and Weights

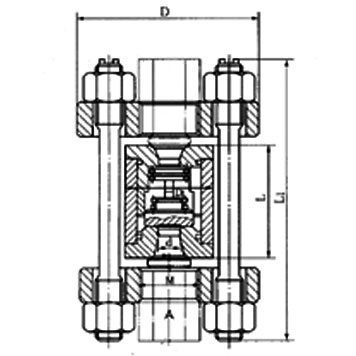

Dimensions and Weights of H72H High Pressure Vertical Check Valve
Type Nominal Diameter dimension (mm)
D D1 d Z-M L L1 weight/Kg
H72H/Y/W 160/220 10 95 42 10 M24×2 60 155 3.4
15 95 42 12 M24×2 60 158 4.1
25 105 50 15 M33×2 68 163 6.9
32 115 62 25 M42×2 80 180 8.0
40 165 88 32 M52×2 90 230 15
50 165 88 39 M64×3 115 265 27
65 200 116 53 M80×3 140 315 49
80 225 138 60 M100×3 160 360 88
100 260 160 76 M125×4 180 420 91
125 300 195 90 M155×4 200 460 115
150 330 212 120 M175×4 220 500 145
H72H/Y/W 220/320 10 95 42 10 M24×2 60 155 3.4
15 105 50 12 M33×2 68 158 4.5
25 115 62 23 M42×2 80 180 7.3
32 135 70 29 M48×2 90 200 8.7
40 165 88 34 M52×3 115 255 17
50 200 116 53 M80×3 140 300 30
65 225 138 60 M100×3 160 345 56
80 260 160 68 M125×4 180 410 92
100 300 195 85 M155×4 200 470 109
125 330 212 120 M175×4 220 510 135
150 400 250 135 M215×6 240 570 160
