H41Y GB China Standard Lift Check Valve

H41Y GB China Standard Lift Check Valve

The main structural characteristics of flange lift check valve:

1. Exquisite selection, in line with domestic and foreign standards, with comprehensive high quality of materials.
2. Flange lift check valve seal pair is mateched advanced and reasonable, the disc and seat sealing surface adopt iron-based alloy or stellite cobalt-based hard alloy build up welding, with wear-resistance, high temperature resistance, corrosive resistance, good anti-abrasion performance, long service life.
3. Flange lift check valve is designed and manufactured according to GB/T 12235 national standard.
4. It can be used with a variety of flange standards and flange sealing types, to meet the various engineering needs and user requirements.

5. Full range of body materials, gaskets can be matched reasonably based on the actual working conditions or the user requests. It can be applied to all kinds of pressure, temperature and medium conditions. According to user requirements, we can design and manufacture check valves with different structural forms and connection forms, for supporting the use of various equipment. Flange lift check valve is used in the pipelines of oil, chemical, fire station and other working conditions that the nominal pressure is PN 1.6 ~ 6.4 MPa, working temperature is -29 ~ 550 °C. Applicable medium: water, oil, steam and so on.

Specifications

Type Nominal Pressure
PN
(MPa) 		Test Pressure
(MPa)		 Temperature
(°C) 		Fluid
Sealing Gas Sealing Shell
H41Y-25I 2.5 2.75 0.6 3.75 ≤ 550 Steam, Water, Oil etc
H41Y-40I 4.0 4.4 0.6 6.0
H41Y-64I 6.4 7.04 0.6 9.6
H41Y-100I 10.0 11.0 0.6 15.0
H41Y-25P 2.5 2.75 0.6 3.75 ≤ 150 Weak Corrosive Fluid
H41Y-40P 4.0 4.4 0.6 6.0
H41Y-64P 6.4 7.04 0.6 9.6
H41Y-100P 10.0 11.0 0.6 15.0

Materials

Part Name Body, Bonnet, Disc Body & Disc Sealing Face Gasket Bolt
Material I Cr-Mo Steel Hard Alloy Steel Strip Asbestos Winding Gasket Cr-Mo-V Steel
P Cr-Mo-Ti
Stainless Steel 		Hard Alloy PTFE Stainless Steel

Dimensions and weights

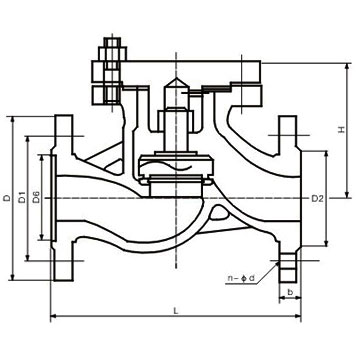

Dimensions and weights of H41Y GB China Standard Lift Check Valve
Nominal Diameter DN( mm ) dimensions ( mm ) Weight (Kg)
L D D1 D2 b f Z-фd H D3
15 130 95 65 45 16 2 4-ф14 100 - 5
20 150 105 75 55 16 2 4-ф14 105 - 7
25 160 115 85 65 16 2 4-ф14 115 110 9
32 190 135 100 78 18 2 4-ф18 120 120 10
40 200 145 110 85 18 3 4-ф18 140 135 15
50 230 160 125 100 20 3 4-ф18 150 150 20
65 290 180 145 120 22 3 8-ф18 160 175 25
80 310 195 160 135 22 3 8-ф18 175 200 32
100 350 230 190 160 24 3 8-ф23 200 230 57
125 400 270 220 188 28 3 8-ф25 230 273 -
150 480 300 250 218 30 3 8-ф25 265 330 -
200 600 360 310 278 34 3 12-ф25 300 365 -
