API 600 / 603 Bellows Seal Gate Valve

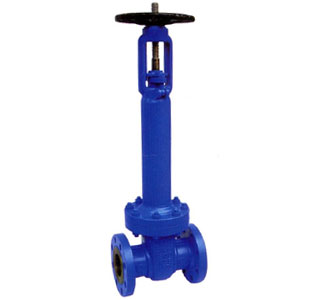

Cast Stainless Steel Bellows Seal Gate Valve

Specification

ASME Pressure Class 150 (0.6 MPa - 2.0 MPa) - 600 Lb (10.0 MPa); 1/2″ - 14″ (15 mm - 350 mm)

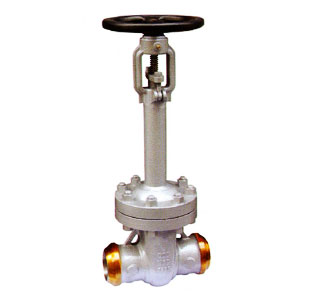

Bolted Bonnet (BB), Bolted Gland (BG), Outside Screw & Yoke (OS & Y); Butt Welded (BW) Ends; Raised Flanged (RF), Ring Joint Flanged (RTJ), Flat Face Flanged (FF), Male & Female Face Flange (M&F)

Cast bellows seal gate valve acc. to ASME and API Standard is applicable to the cutting and connection of pipelines medium that are used in various industries such as petroleum, chemical industry, pharmacy, chemical fertilizer, electric power industry etc. under nominal pressure of Class 150 - 900 Lb and working temperature of -20 - 662°F (-29~350°C)

Structural formation: BB-BG-OS & Y

Actuator: HandWheel, Worm Gear, Electric-Actuated

Design standard: API 600, API 603

Face to Face: ASME B16.10

Flange Ends: ASME B16.5

Test & Inspection: API 598

Nominal Pressure (Lb)	Shell Test (MPa)	Sealing Test (MPa)	Suitable temp. (°C)	Suitable Medium
150	3.0	2.2	≤ 350°C	Water Oil & Gas
300	7.5	5.5
600	15.0	11
900	22.5	16.5
1500	37.5	27.5

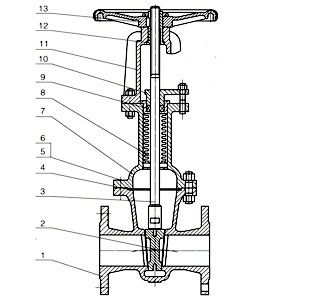

Materials

No.	Part Name	Materials
1	Body	ASTM A216-WCB ASTM A351-CF8, CF8M, CF3, CF3M
2	Disc	ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304, F316, F321, F304L, F316L
3	Stem	ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304, F316, F321, F304L, F316L
4	Gasket	Flexible Graphite + Stainless Steel, PTFE
5	Bolt	ASTM A193-B7, A193-B8, A193-B8M
6	Nut	ASTM A194-2H, A194-8, A194-8M
7	Bonnet	ASTM A216-WCB ASTM A351-CF8, CF8M, CF3, CF3M
8	Bellow Assemble	ASTM A182-F304, F316, F321, F304L, F316L
9	Packing	Flexible Graphite, PTFE
10	Gland	ASTM A216-WCB ASTM A351-CF8, CF8M, CF3, CF3M
11	Yoke	ASTM A216-WCB ASTM A351-CF8, CF8M, CF3, CF3M
12	Yoke Nut	ZQA19-4
13	Handwheel	ASTM A536Gr.60-40-18, A216-WCB

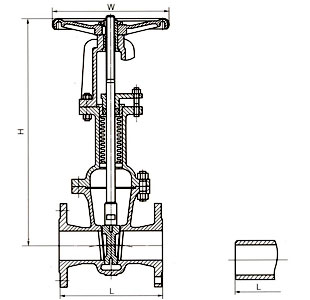

Sizes (inch & mm) & Weights (Kg) - 150 Lb; Welded or Flanged

Size and Weight of Cast Bellows Seal Gate Valve

Model	WZ41-150 Lb
Pressure	150 Lb
mm	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350
Size in	1/2	3/4	1	1 1/4	1 1/2	2	2 1/2	3	4	5	6	8	10	12	14
L	108	117	127	140	165	178	190	203	229	254	267	292	330	356	381
H	200	210	250	260	290	370	398	440	490	530	580	670	760	850	950
W	120	140	140	180	200	220	260	280	300	340	400	450	450	500	500
(Kg)Weight	8	9	10	15	22	30	42	55	70	100	140	180	250	350	450

Sizes (inch & mm) & Weights (Kg) - 300 Lb; Welded or Flanged

Class 300 Lb Cast Bellows Seal Gate Valve

Model	WZ41-300 Lb
Pressure	300 Lb
mm	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350
Size in	1/2	3/4	1	1 1/4	1 1/2	2	2 1/2	3	4	5	6	8	10	12	14
L	140	152	165	178	190	216	241	283	305	381	403	419	457	502	762
H	200	210	250	260	290	370	398	440	490	530	580	670	760	850	980
W	120	140	140	180	200	220	260	280	300	340	400	450	450	500	500
(Kg)Weight	9	10	12	18	25	38	53	70	88	125	175	225	310	440	560

Sizes (inch & mm) & Weights (Kg) - 600 Lb; Welded or Flanged

Class 600 Lb Cast Bellows Seal Gate Valve

Model	WZ41-600 Lb
Pressure	600 Lb
mm	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350
Size in	1/2	3/4	1	1 1/4	1 1/2	2	2 1/2	3	4	5	6	8	10	12	14
L	165	190	216	229	241	292	330	356	432	508	559	660	787	838	889
H	200	210	250	260	290	370	398	440	490	530	580	670	760	850	980
W	120	140	140	180	200	220	260	280	300	340	400	450	450	500	500
(Kg)Weight	11	13	16	24	32	50	70	90	105	165	230	300	400	570	730

Performance

This product has logical structure, reliable seal, excellent performance and nice design.
The seal surface is build-up welding with Co hard alloy, which is attrition-resistant, corrosion-resistant, has good friction resistant and long life.
The stem is quenched and tempered, and its surface is treated by nitriding treatment, thus it has good corrosion resistant and friction resistant.
It has double seal capability, thus is more reliable.
The stem may show the position of lift, thus it is clearer.
The part material, flange and butt weld end dimension may be selected according to current operating condition. and users' requirement, so that meet the requirements of various engineering.
