Cast Steel Floating Ball Valves

Standard 1000 Psi / WOG-Two Piece-PTFE Seated-Cast-Floating

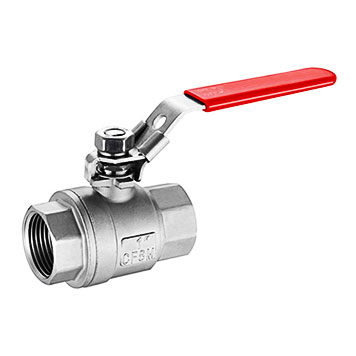

Pic of Standard 1000 Psi / WOG-Two Piece-PTFE Seated-Cast-Floating
FEATURES:
Blow-out Proof Stem
Pressure Balance Hole in Ball Slot
Various Thread Standards Available
Lock device
STANDARDS:
Design: ASME B16.34
Wall Thickness: ASME B16.34
Pipe Thread: ASME B1.20.1,BS21
DIN 2999/259, ISO 228/1 JIS B 0203, ISO 7/1
Inspection & Testing: MSS SP-110, EN 12266

Materials and Sizes

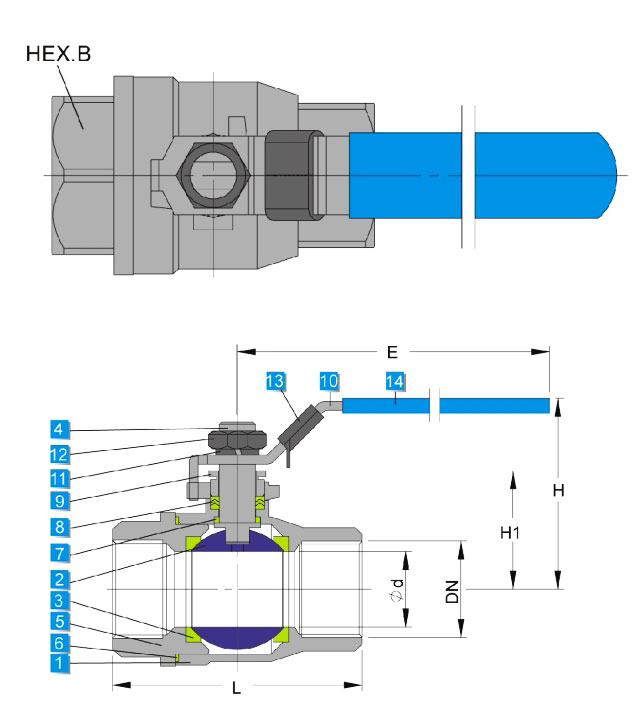

Materials of Standard 1000 Psi / WOG-Two Piece-PTFE Seated-Cast-Floating
No. PARTS NAME MATERIAL
1 Body CF8M CF8 WCB
2 Ball CF8M CF8
3 Seat PTFE
4 Stem SUS316   SUS304
5 Cap CF8M CF8 WCB
6 Cap Seal PTFE
7 Thrust Washer PTFE
8 Stem packing PTFE
9 Gland Nut SUS301
10 Handle SUS301
11 Spring Washer SUS301
12 Stem Nut SUS304
13 Locking Device SUS301
14 Handle Cover Plastic
DN Φd L H1 H E Thread
1/2" 15 57 25.5 58.5 98 NPT, MPT, BSPT,
BSP, DIN, PT, etc.
3/4" 20 65 28.5 62.5 120
1" 25 77 34 68 130
1 1/4" 32 90 42 82 150
1 1/2" 38 97 47 92 170
2" 49 115 55.5 100 170

M3 1000 Psi / WOG-Two Piece-PTFE Seated-Cast-Floating

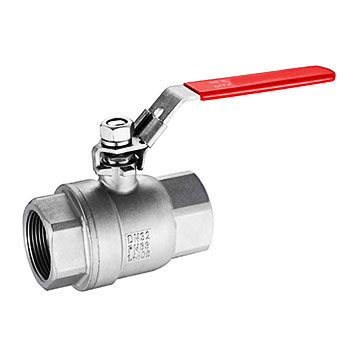

Pic of M3 1000 Psi / WOG-Two Piece-PTFE Seated-Cast-Floating
FEATURES:
Blow-out Proof Stem
Pressure Balance Hole in Ball Slot
Various Thread Standards Available
Lock device
STANDARDS:
Design: ASME B16.34
Wall Thickness: ASME B 16.34
Face to Face: DIN 3202-M3
Pipe Thread: ASME B1.20.1.BS21 DIN 2999/259,
ISO 228/1 JIS B 0203, ISO 7/1
Inspection & Testing: MSS SP-110, EN 12266

Materials and Sizes

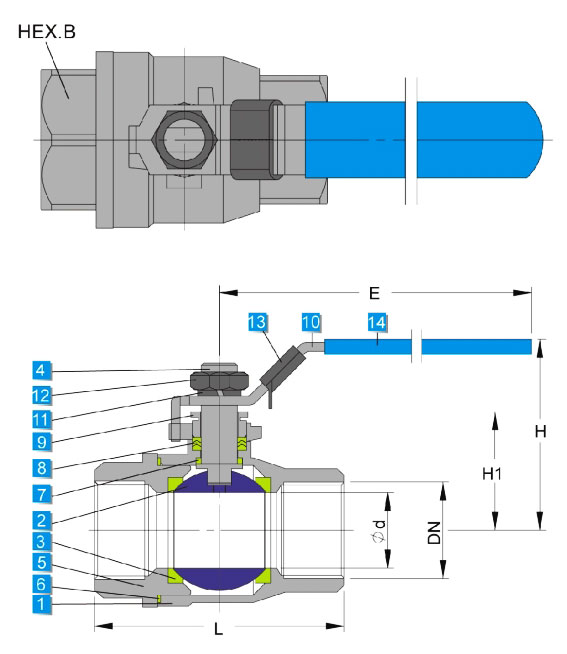

Materials of M3 1000 Psi / WOG-Two Piece-PTFE Seated-Cast-Floating
No. PARTS NAME MATERIAL
1 Body CF8M CF8 WCB
2 Ball CF8M CF8
3 Seat PTFE
4 Stem SUS316   SUS304
5 Cap CF8M CF8 WCB
6 Cap Seal PTFE
7 Thrust Washer PTFE
8 Stem packing PTFE
9 Gland Nut SUS301
10 Handle SUS301
11 Spring Washer SUS301
12 Stem Nut SUS304
13 Locking Device SUS301
14 Handle Cover Plastic
DN Φd L H1 H E Thread
1/4" 10.5 50 20.5 51.5 98 NPT, MPT, BSPT, BSP, DIN, PT, etc.
3/8" 12 60 25 58 98
1/2" 15 75 28 64.5 120
3/4" 20 80 30.5 67 120
1" 25 90 39 78.5 150
1 1/4" 32 110 44 83.5 150
1 1/2" 38 120 54 98 170
2" 48 140 63 107 170
2-1/2" 65 185 80.5 133 250
3" 78 205 91 143.5 250
4" 100 240 107.5 168 300

1000 Psi / WOG-Two Piece-PTFE / RPTFE / PPL Seated
Cast-Floating-with ISO Direct Mount Pad

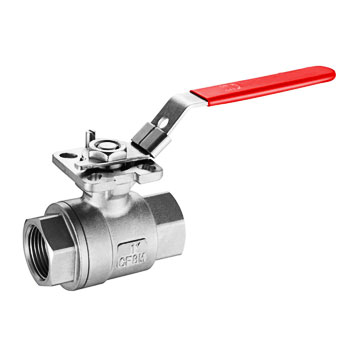

Pic of 1000 Psi / WOG-Two Piece-PTFE / RPTFE / PPL Seated Cast-Floating-with ISO Direct Mount Pad
FEATURES:
Anti-Static Devices For Ball-Stem-Body
Blow-out Proof Stem
Pressure Balance Hole In Ball Slot
Built In ISO 5211 Direct Mounting Pad For Easy Automation
STANDARDS:
Design: ASME B16.34
Wall Thickness: ASME B16.34
Pipe Thread: ASME B1.20.1.BS21
DIN 2999/259JSO 228/1 JIS B 0203, ISO 7/1
Inspection & Testing: MSS SP-110, EN 12266

Materials and Sizes

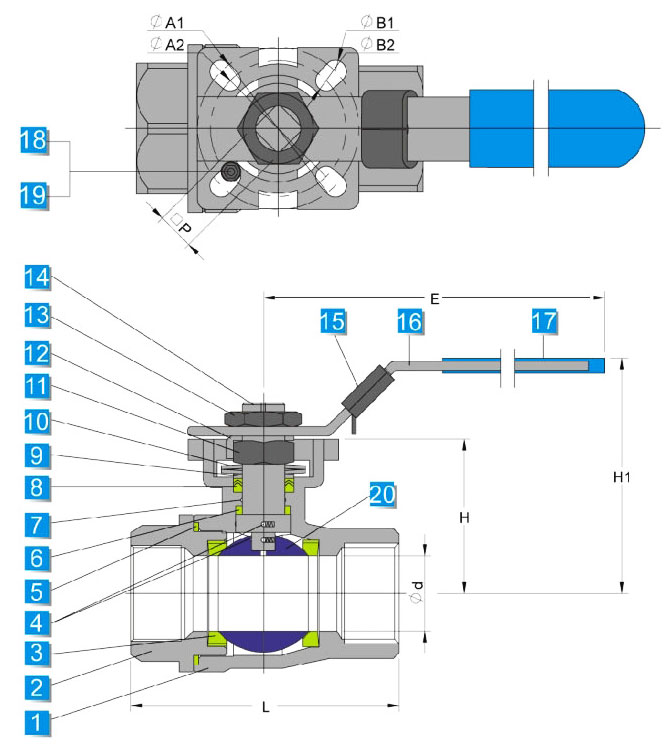

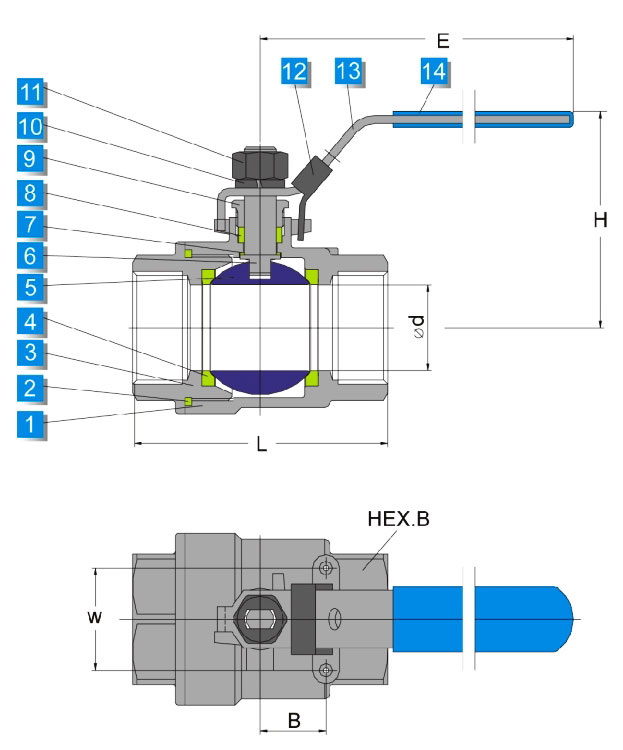

Materials of 1000 Psi / WOG-Two Piece-PTFE / RPTFE / PPL Seated Cast-Floating-with ISO Direct Mount Pad
No. PARTS NAME MATERIAL
1 Body CF8M CF8 WCB
2 Cap CF8M CF8 WCB
3 Seat PTFE/RPTFE/PPL
4 Anti-Static Device SUS301
5 Body Gasket PTFE/RPTFE
6 Thrust Washer PTFE/RPTFE
7 O-Ring VITON/FKM
8 V-Rinq Packinq PTFE/RPTFE
9 Gland SUS304
10 Belleville Washer SUS301
11 Stop Nut A194-8
12 Thrust Washer SUS304
13 Stem Nut SUS304
14 Stem SUS316 SUS304
15 Locking Device SUS301
16 Handle SUS304
17 Handle Cover Plastic
18 Lockinq Bolt SUS304
19 Nut SUS304
20 Ball SUS316 SUS304
Size Φd L H H1 E ΦA2 ΦA1 ΦB2 ΦB1 □ P ISO 5211 HEX.B End
1/4" 10.5 50 26 50 98 36 42 6 6 9 F03-F04 21 NPT
BSPT
PT
DIN
BSP
etc.
3/8" 12 60 30 57 110 36 42 6 6 9 F03-F04 21
1/2" 15 75 37 65 110 36 42 6 6 9 F03-F04 25
3/4" 20 80 40 67 110 36 42 6 6 9 F03-F04 32
1" 25 90 49 80 130 42 50 6 7 11 F04-F05 40
1-1/4" 32 110 53 83 160 42 50 6 7 11 F04-F05 48
1-1/2" 38 120 62 99 185 50 70 7 9 14 F05-F07 55
2" 48 140 70 107 185 50 70 7 9 14 F05-F07 69
2-1/2" 65 185 95 163 305 70 102 9 11 17 F07-F10 85
3" 80 205 110 168 305 70 102 9 11 17 F07-F10 98

2000 Psi / WOG-Two Piece-PTFE / RPTFE / PPL Seated-Cast-Floating

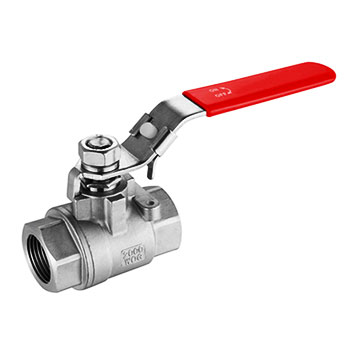

Pic of 2000 Psi / WOG-Two Piece-PTFE / RPTFE / PPL Seated-Cast-Floating
FEATURES:
Blow-out Proof Stem
Pressure Balance Hole in Ball Slot
Various Thread Standards Available
Lock device
STANDARDS:
Design: ASME B16.34
Wall Thickness: ASME B16.34
Pipe Thread: ASME B1.20.1.BS21
DIN 2999/259,ISO 228/1
JIS B 0203, IS0 7/1
Inspection & Testing: MSS SP-110, EN 12266

Materials and Sizes

Materials of 1000 Psi / WOG-Two Piece-PTFE / RPTFE / PPL Seated Cast-Floating-with ISO Direct Mount Pad
No. PARTS NAME MATERIAL
1 Body CF8M CF8 WCB
2 Body Gasket PTFE
3 Cap CF8M CF8 WCB
4 Seat PTFE RPTFE PPL
5 Ball CF8M CF8
6 Stem SUS316 SUS304
7 Thrust Washer PTFE
8 Stem Packing PTFE RPTFE
9 Packing gland SUS304
10 Sprinq Washer SUS304
11 Stem Nut A193-B8
12 Lockinq Device SUS301
13 Handle SUS304
14 Handle Cover Plastic
Size L Φd H E W B Thread
1/4" 55 10.5 56 100 29 21 NPT, MPT, BSPT, BSP, DIN, PT, etc.
3/8" 55 10.5 56 100 29 25
1/2" 63 15 65.5 120 29 31
3/4" 74.5 20 72 150 33 36.5
1" 87.5 25 81 170 33 43
1-1/4" 102 32 88 170 38 52
1-1/2" 107 38 97 190 38 60
2" 124 48 121 190 38 72
