Self Pressure Diffential Control Valve

Summary

ENZYC Self Pressure Diffential Control Valve is such a valve as using the self pressure variation to do self control while keep the pressure differential of the medium flowing through this controlled system unchanged. Suitable for the pressure differential control of the warming supply using a dual-pipeline system to guarantee the system basically unchanged, lower the noise, balance the resistance and get rid of the heat-net and hydraulic imbalance.

Self Pressure Diffential Control Valves
Self Pressure Diffential Control Valves

Technical Parameters

Model PN(MPa) Casing test pressure Control range of pressure differential
Fixed pressure differential type Adjustable pressure differential type
ZYC-16 1.6 2.4 MPa 10KPa,20KPa,30KPa 10~30KPa

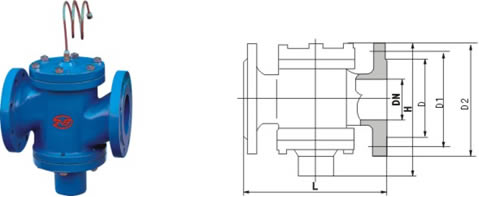

Dimensions (mm)

DN
mm		 Way of connection L
mm		 D D1 D2 H(mm) Flow
(m3/h)		 Medium used Medium temperature Part material
Fixed pressure differential type Adjustable pressure differential type
15 Thread 110 95 65 45 95 145 0.2-1 Water 0~100°C Body, upper and lower bonnets: cast iron valve core: copper membrane: nylon reinforced rubber spring: stainless steel
20 110 105 75 55 110 150 0.3-
1.5
25 115 115 85 65 130 165 0.5-2
32 Flange 130 135 100 78 140 190 1-4
40 200 145 110 85 190 340 1.5-6
50 215 160 125 100 205 355 2-8
65 230 180 145 120 240 390 3-12
80 275 195 160 135 300 500 5-20
100 290 215 180 155 350 550 10-30
125 310 245 210 185 380 580 15-45

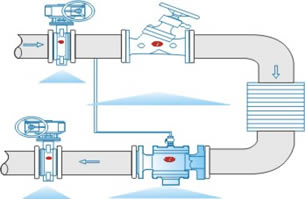

Typical Installation

Typical Installation of Self Pressure Diffential Control Valves
