JD745X Pump Control Valve

Photo of JD745X Pump Control Valve

Overview

JD745X pump control valve is mounted on the water pumps outlet pipeline of the high buildings and other water supply systems to prevent of the mediums back-flow and the water hammer and water shock.

JD745X pump control valve has good effect of water hammer removal. Integrating the technical principles of water hammer removal by means of slow open, quick close and slow close, so as to prevent of the water hammers at both pump start and stop.

Easy operation. The valve will open or close automatically as per the operation procedures of the pump, once operates the On-Off button of the pumps motor.

Good effect of energy saving. The valve body is designed as full-path straight-flow type, resulting in small pressure loss, big flow, small volume and light weight.

Performance

Nominal Pressure
(MPa)		 Shell Test
(MPa)		 Sealing Test
(MPa)		 Fluids Fluids Temp
(°C)
1.0 1.5 1.1 Water 0-80
1.6 2.4 1.76
2.5 3.75 2.75

Materials

Materials: Pump Control Valves
No. Part Material
1 Plug Alloy Bronze
2 Body Cast Iron (GG25, HT200) / Ductile Iron (GG40, QT)
3 Seat 410 S.S. / SS 304 / SS 316
4 O-Ring NBR
5 O-Ring NBR
6 O-Ring Retainer Cast Iron
7 Stem 410 S.S. / SS 304 / SS 316
8 Disc Cast Iron (GG25, HT200) / Ductile Iron (GG40, QT)
9 Diaphragm Rubber
10 Diaphragm washer Cast Iron
11 Nut Alloy Bronze
12 Ball valve Alloy Bronze
13 Spring Stainless steel
14 Cover Cast Iron (GG25, HT200) / Ductile Iron (GG40, QT)
15 Pilot socket Alloy Bronze
16 Solenoid valve Alloy Bronze
17 One-way valve Alloy Bronze
18 On/Off
19 Yoke Steel
20 Limitation piece Alloy Bronze
21 Plug Alloy Bronze
22 Metering 410 S.S.
23 One-way valve Alloy Bronze
24 Needle Valve Alloy Bronze
25 Nut Steel
26 Screw Steel
27 Ball valve Alloy Bronze
28 Pressure Gauge
29 Connection Pipe Alloy Bronze

Dimensions

Dimensions of JD745X Pump Control Valve
DN L D D1 n-d H
1.0MPa 1.6 (MPa 2.5 MPa 1.0MPa 1.6 MPa 2.5 MPa 1.0MPa 1.6 MPa 2.5 MPa
50 205 165 165 165 125 125 125 4-18 4-18 4-18 293
65 216 185 185 185 145 145 145 4-18 4-18 8-18 328
80 250 200 200 200 160 160 160 8-18 8-18 8-18 364
100 320 220 220 235 180 180 190 8-18 8-18 8-22 418
125 365 250 250 270 210 210 220 8-18 8-18 8-22 481
150 415 285 285 300 240 240 250 8-22 8-22 8-26 543
200 500 340 340 360 295 295 310 8-22 12-22 12-26 673
250 605 395 405 425 350 355 370 12-22 12-26 12-26 792
300 698 445 460 485 400 410 430 12-22 12-26 12-30 927
350 787 505 520 555 460 470 490 16-22 16-26 16-30 957
400 914 565 580 620 515 525 550 16-26 16-30 16-33 1188
450 978 615 640 670 565 585 600 20-26 20-30 16-36 1218
500 978 670 715 730 620 650 660 20-26 20-33 20-36 1256
600 1150 780 840 845 725 770 770 20-30 20-36 20-39 1600
700 1300 895 910 960 840 840 875 2430 24-36 24-42 1750
800 1450 1015 1025 1085 950 950 990 2433 24-39 24-48 1900

Installation

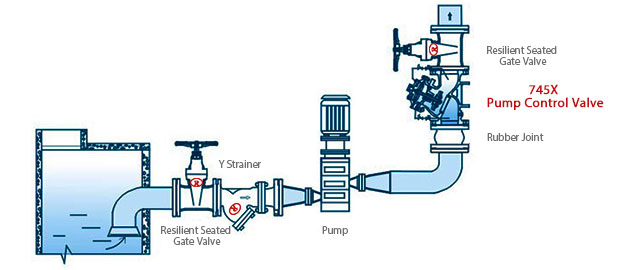

Installation of JD745X Pump Control Valve
