DS107X Pressure Relief, Pressure Sustaining Valve (ACV)

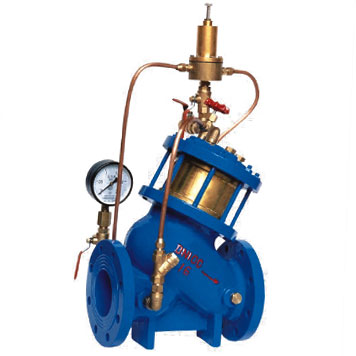

Photo of DS107X Pressure Relief, Pressure Sustaining Valve (ACV)

Performance

Nominal Pressure
(MPa)		 Shell Test
(MPa)		 Sealing Test
(MPa)		 Fluids Fluids Temp
(°C)
1.0 1.5 1.1 Water 0-80
1.6 2.4 1.76
2.5 3.75 2.75

Materials

Name Materials
Body, Bonnet ASTM A536 Gr-65-45-12, GGG 40, GGG 50
Seat, Plug Brass
O-Ring NBR
Stem SS 420
Spring G61500
Needle Valve Brass
Ball Valve Brass
PRV / PSV Brass
Strainer Stainless Steel
Materials of DS107X Pressure Relief, Pressure Sustaining Valve (ACV)

Dimensions

DN 50 65 80 100 125 150 200 250 300 350 400 450 500 600 700 800 900 1000
L 205 216 250 320 365 415 500 605 698 787 914 978 978 1150 1300 1450 1650 1800
H 300 337 467 520 580 640 778 889 1010 1037 1264 1294 1324 1600 1750 1900 2100 2400

Installation

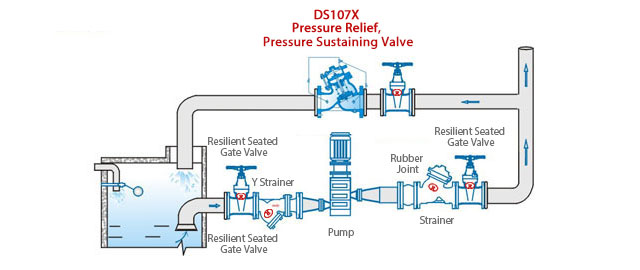

Installation of DS107X Pressure Relief, Pressure Sustaining Valve (ACV)
