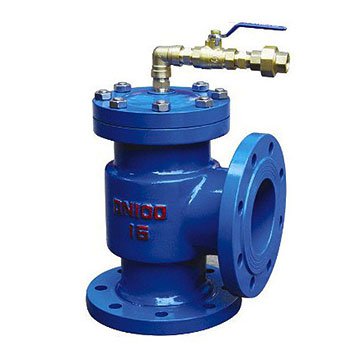

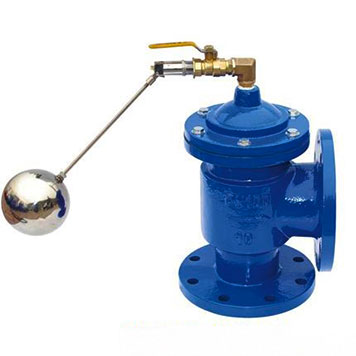

H142X Angle Altitude Control Valve
Overview
When the level lowers, the floating valve of H142X angle altitude control valve opens to supply water; there is pressure inside the water in the pipe to hold the piston inside the valve up, then the sealing-face opens and the valve supplies water.
When the level gets to the controlled line, the floating valve closes and the piston moves downwards to closes the sealing-face, at last the vale stops the water supply.

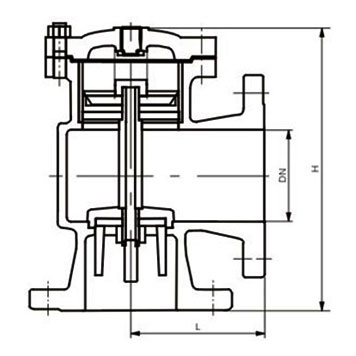

Dimensions
| DN | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 |
| D | 145 | 160 | 180 | 195 | 215 | 245 | 280 | 335 | 405 | 460 | 520 |
| D1 | 110 | 125 | 145 | 160 | 180 | 210 | 240 | 295 | 355 | 410 | 470 |
| L | 107 | 115 | 125 | 135 | 146 | 165 | 180 | 215 | 255 | 285 | 325 |
| H | 235 | 243 | 258 | 280 | 307 | 358 | 400 | 490 | 576 | 663 | 750 |

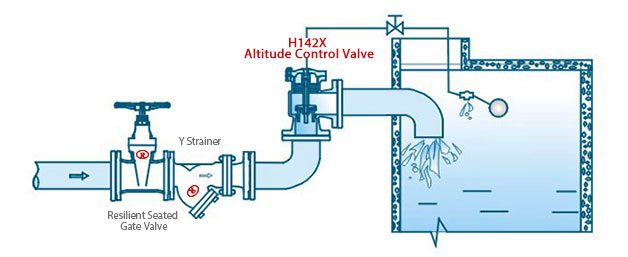

Installation
